About Online SDI Meter

"Innovative Water Technologies" are the sole authorised distributor in India for MABAT - Israel make online SDI meters.

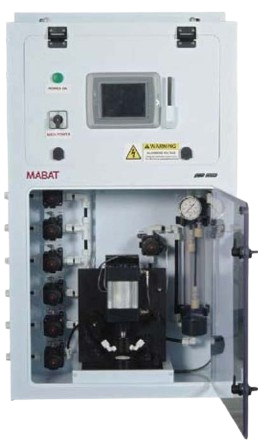

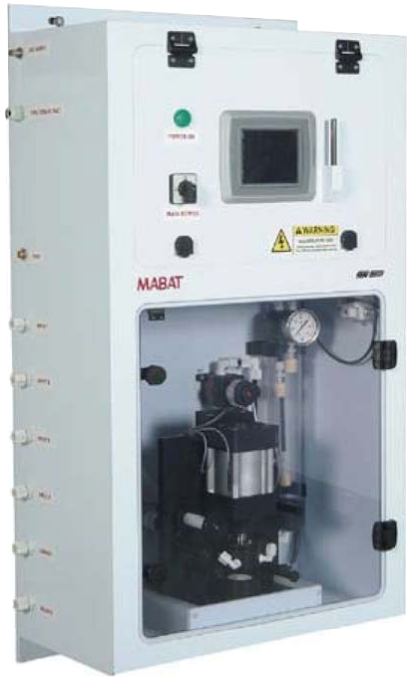

The SDI 2200 (Silt Density Index) fully automatic, multi-channel online analyzers and monitoring systems.

The SDI 2200 designed for continuous, unattended operation in desalination and other water treatment plants.

Fully complies with the ASTM D4189-07
CE certified
Up to 85 cycles (to complete one paper filter roll) without operator interference
Several modes of operation and calculation per channel
Three built-in operational modes:
1. Manual(one-cycle only)
2. Auto (programmable time interval)
3. Remote (pre-started selected channel from remote station)
Two built-in calculation formulas can be programmed per channel:
1. "Standard" mode test for low SDI water (less than 5.0, for 15 minutes).
2. "Auto Time" mode test for high SDI water (greater than 5.0, for 15 minutes).
Measurement Time: 1-15 minutes

CABINATE PPS / IPS3 ( Wall Mounted)
DIMENSIONS (in mm)	W 525	D 310	H 1,126
DIMENSIONS (in IN)	W 20.6	D 12.2	H 44
WEIGHT	50 [Kg]	or	106 [Lb]
WETTED PARTS	PP	PVC and	Nylon 12

SAMPLE LINE
INPUT PRESSURE	2.4 to 6.0 [Bar] or 35 to 80 [Psig]
FLOW RATE	1.5 [L/min]

FILTER PAPER
TYPE	Standard Millipore 0.45 micron paper roll
Length of Roll	6 [Meter] or 20 [Ft] Up to 85 measurements per roll

Rated Environmental Conditions: Indoor or under roof
Environmental Protection	IP - 53
Max Operating Ambient	50°C
Max Relative Humidity	80%

Options analog output (programmable range) per channel for remote control and monitoring purposes.
Booster pump - When supply is in low pressure, one booster pump supports all channels.
Temperature measurement and compensation (if necessary).

Analog isolated output per channel: 0-5 [Volts], 0-20 [mA] and 4-20 [mA]

Uptime	> 99.9%
Repeatibility	Less than 0.1 SDI units
